Air Cooled draft beer System components
_________________________

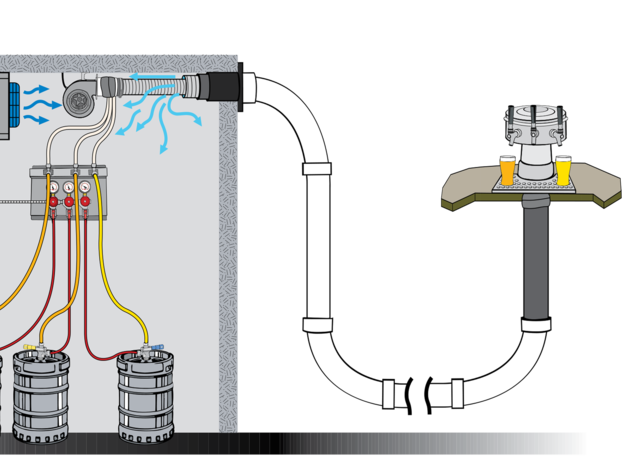

Air Cooled Systems are economical to install if the point of dispense is less than 25 feet from the refrigerated keg. These systems are good for short runs, but are difficult to maintain temperature in longer situations. It is important to have good air circulation around the beer line to the faucet. The circulation then needs to return to the cooler, creating a loop. If maintaining the temperature looks like it could be an issue, move up to a small glycol power pack.
Blowers

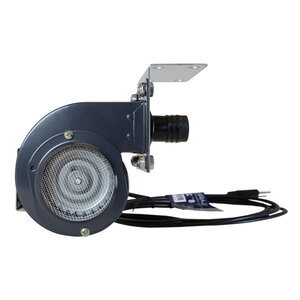

An impeller blower is used to circulate cold air from the refrigeration unit, through ducting carrying the beer to the faucet. Check the distance from the keg to the faucet and choose a blower sized for the application.
AIR SHAFTS

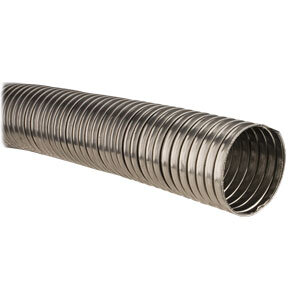

Flexible metal ducting is used to create a chamber to contain the beer tubing and cold air. Flexible metal tubing is only sold in 25 foot coils. Shorter systems can be created from PVC. Tech Note: The system must not have more than two 90° bends in it. Every 90° bend in the system is equal to adding five extra feet of run to the system, i.e. a 10 foot system with one bend is really a 15 foot system.
Insulation
Always wrap the air duct with 3/4” wall insulation to maintain the 38° temperature from the cooler. We also carry 2” wide foam tape insulation for finishing off a job.
Fittings and Accessories
On this page you will also find black duct tape, spray foam insulation, and:
- Mounting flange adapter - This adapter makes a clean mounting point for the air duct exit/entrance point on the cooler unit.
- Baffle plate - Complete the air circulation loop: insert a baffle plate into the tower.
For an understanding of a complete draft beer system setups or if you don't see what you're looking for, or need more information to order a draft beer system, please give us a call at (866) 291-5756 or send us an email at sales@micromatic.com. We also invite you to visit our Dispense Forum where troubleshooting topics and replies are posted. Our goal is your draft beer enjoyment!
