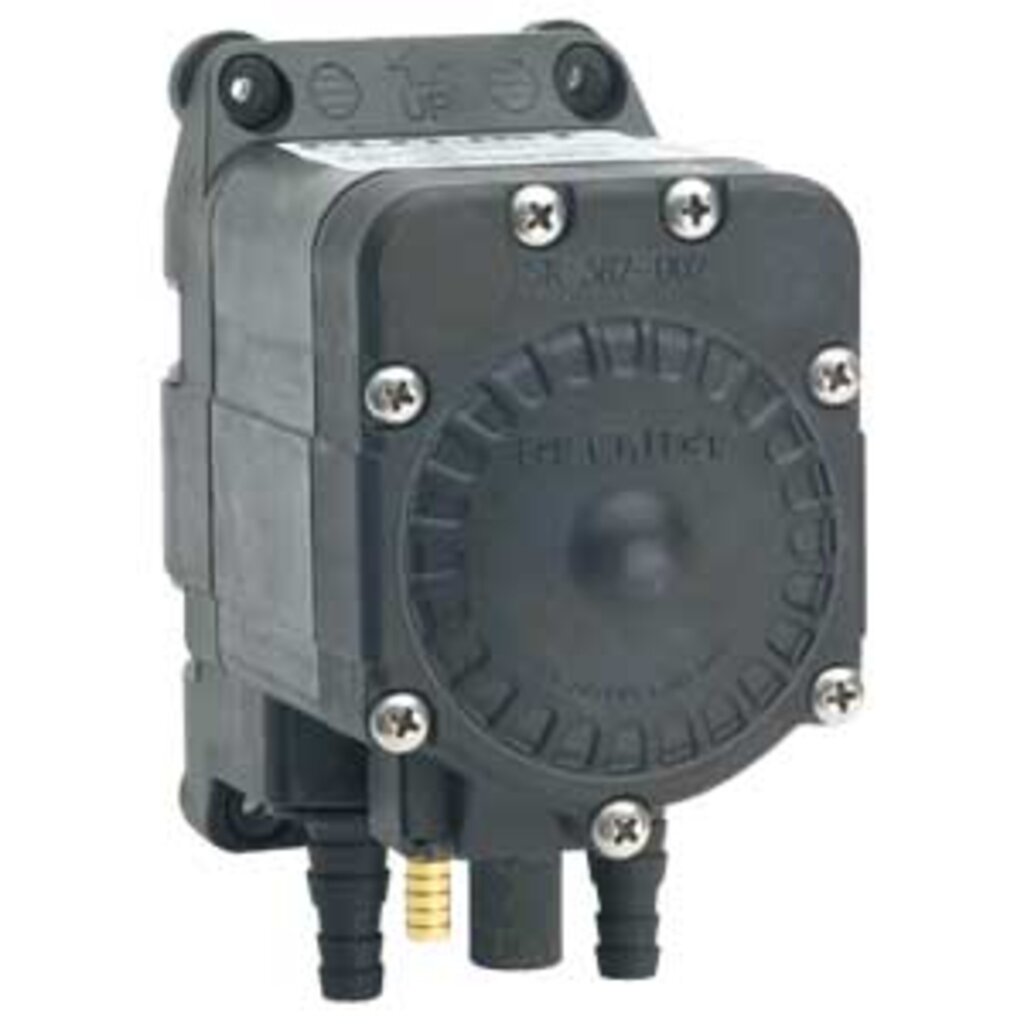

Flojet Beer Pump

Beer pumps are designed for dispensing draft beer from a beer keg, cask, or brew kettle through both long or short, vertical or horizontal line runs while maintaining the brewer's recommended applied pressure on the beer. The beer gas pressure applied to the beer and the air/gas pressure applied to the pump, to move the beer from the vessel to the point of dispense are completely separate.

Installation

The pressure on the keg in a beer pump system should always be only the pressure and type of beer gas the brewer recommends to maintain the carbonation level in the keg.

The operating pressure of the beer pump is used to control the flow rate. Due to the pump's powerful hydraulic push against the beer, the system must be considerably over-restricted.

Mounting

• The pump must be located within 10 feet of the keg
• Pump ports must be facing down to maximize pump performance
• Mounting grommets are part of the pump assembly, and add stability
• Fasten the pump securely to the wall or rack
• If using a FOB, mount it slightly above and directly after the discharge of the pump

CAUTION: If a FOB is not used, the pump will continue to cycle after the keg has emptied

Hose Connections

• All fittings are quick change
• Be sure the brass CO2 fitting is installed all the way and the retainer clip is engaged
• Use brewery approved tubing between the pump and the faucet. Allow at least two feet extra tubing to the CO2 inlet and the beer inlets/outlets to provide a service loop
• Secure with the appropriate clamp
• It is advisable to secure all hoses to prevent excessive movement
• If pump is installed in an enclosed area such as a closet, basement or walk in beer cooler, connection of a hose to the gas discharge fitting must be done to vent CO2 to the atmosphere safely. The muffler on the CO2 exhaust can be removed with pliers

Operation Start-Up

To start beer pump operation, set the pressure to 15 PSI and adjust up until the desired flow rate is obtained. Once primed, the pump will operate automatically by starting and stopping on demand, as the faucet is opened and closed. Beer flow can be adjusted by increasing or decreasing the beer gas pressure of the pump.

Warning!

IF USED WITH CO2 OR NITROGEN BE SURE THE AREA IS WELL VENTILATED. ONLY USE PUMP WITH SPECIFIED PRODUCTS. DO NOT PUMP FLAMMABLE LIQUIDS OR USE WHERE FLAMMABLE VAPORS ARE PRESENT.
