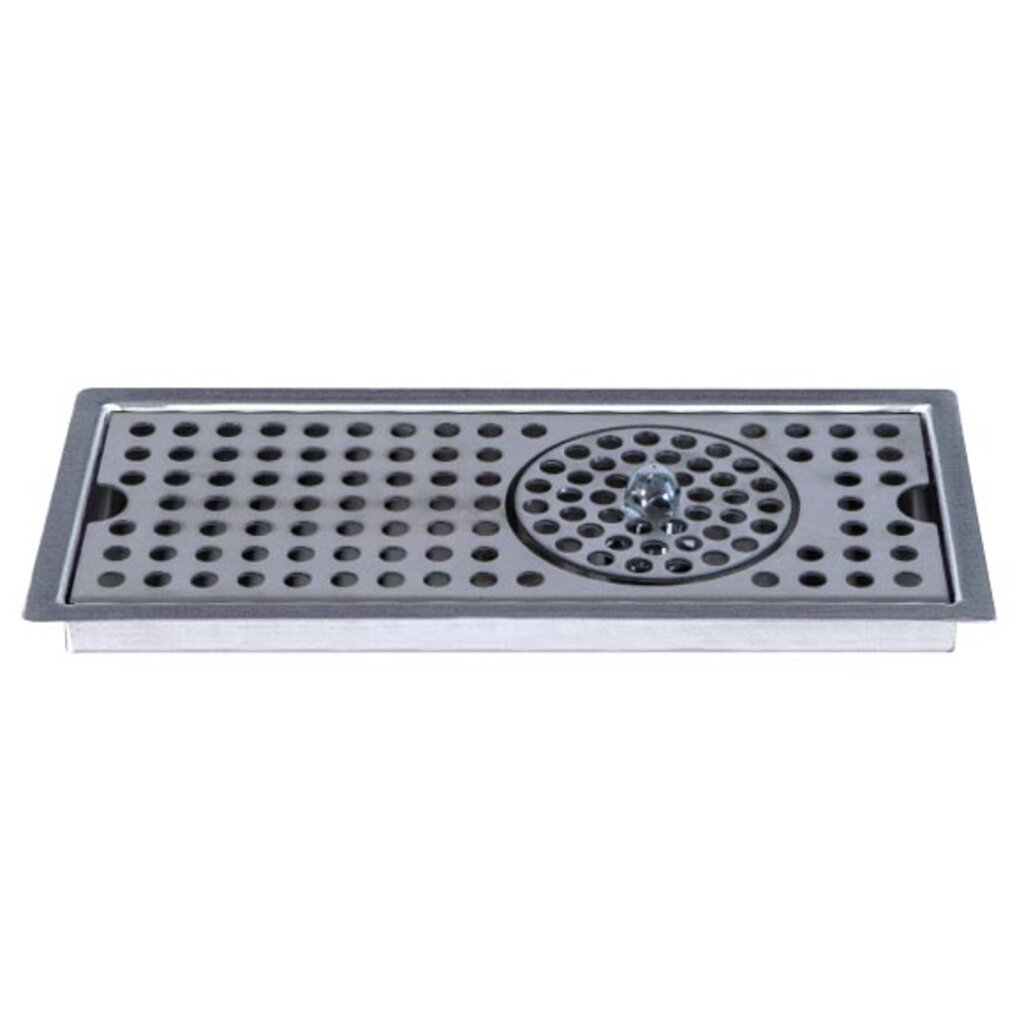

Drip Tray - 12" Flush Mount - Glass Rinser

FEATURES

• Premium flush-mounted drip tray with glass rinser
• Robust 18 gauge stainless steel construction
• Fast draining, precision perforated screen
• Center-mounted drain, 1-3/4" x 1/2" N.P.T. drain pipe perfect for plumbing with PVC directly to a drain

RINSER WATER INLET INSTALLATION

• Always check local plumbing codes first
• Install in-line water regulator set at 15 PSI from the street water supply (no greater, perfect operating pressure)
• Install in-line one-way check valve from the street water supply (prevents pressure drop which can cause leaking)
• Install in-line shut-off for the rinser system from the street water supply (this must be turned off nightly)
• If teed into soda system make sure system can handle the increased water demand. Have a plumber install a 45° 1/2" O.D. barb for the drains if the line is not hard plumbed into the system
• Install a shut-off for the water supply if the line is not hard plumbed into the system

NOTE: If intended for use with a vinyl drain hose, order item DDN drain nipple separately.
