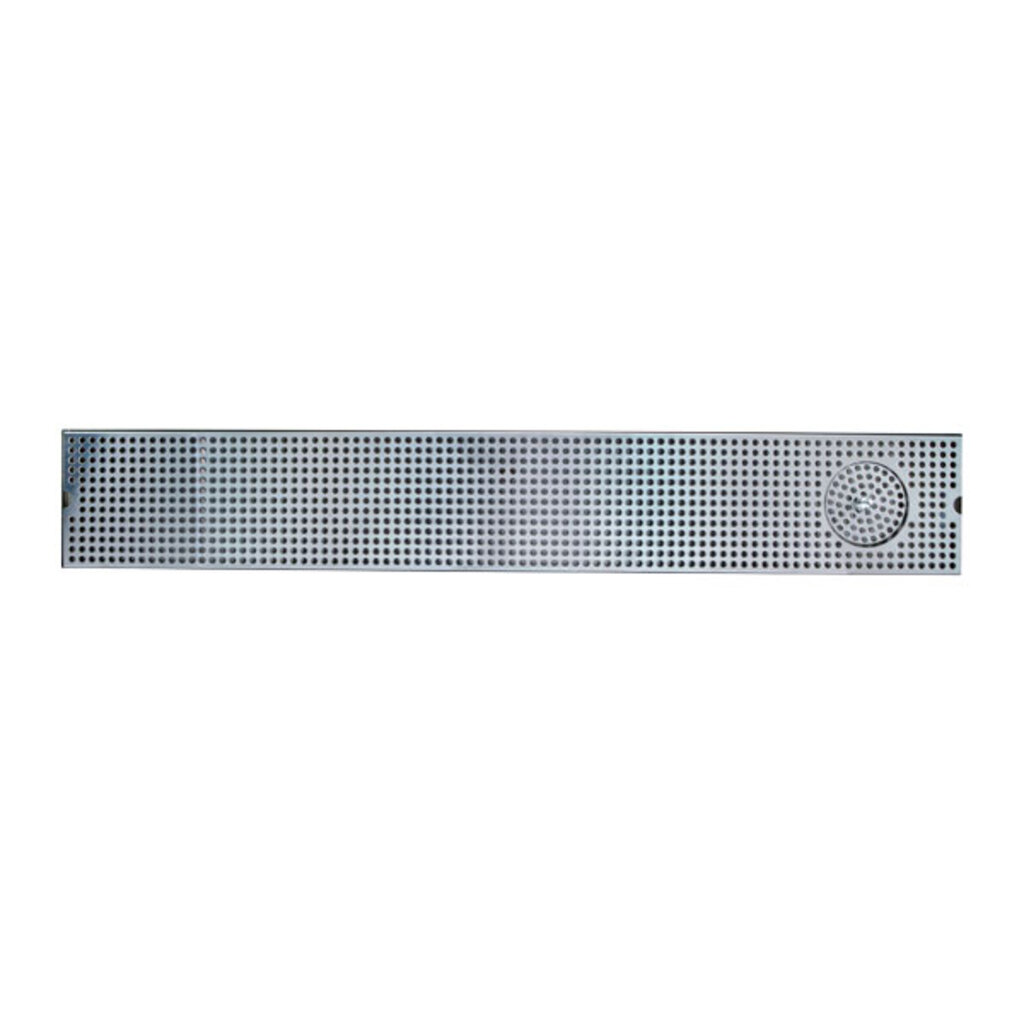

51" Glass Rinser Stainless Steel Drain Tray - 8-12 Faucets

THIS STAINLESS STEEL DRAIN TRAY FEATURES:

• Easy installation: simply drill holes for beer glass rinser and drain
• Robust 18 gauge stainless steel construction
• Welded corners, finished smooth for safety and appearance
• Fast draining, precision louvered screen
• Center mounted solid brass drain

RINSER WATER INLET INSTALLATION:

• Always check local plumbing codes first
• Install in—line water regulator set at 15 PSI from the street water supply (no greater, perfect operating pressure)
• Install in—line one way check valve from the street water supply (prevents pressure drop which can cause leaking)
• Install in—line shut-off for the rinser system from the street water supply (this must be turned off nightly)
• If teed into soda system make sure system can handle the increased water demand. Have plumber install a 45° 1/2" O.D. barb for the drains if line is not hard plumbed into the system
