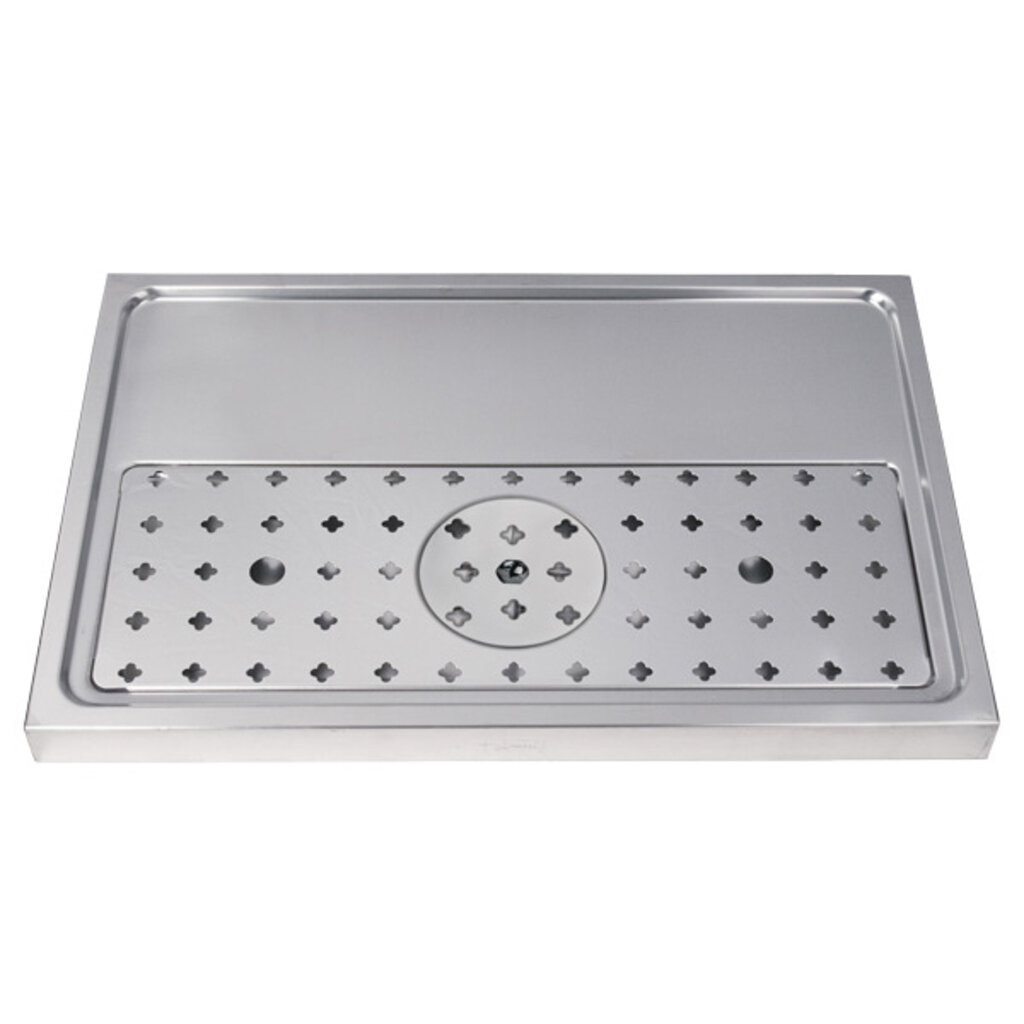

23-5/8" Glass Rinser Tray

The new standard in integrated bar design combines the draft tower mounted to a platform tray. A seamless stainless steel platform tray offers improved hygiene and efficiency at the point of dispense. The tray is constructed of heavy gauge stainless steel with a durable metal rinser.

Condition the Glass Before Dispensing

• Rinse away any impurities that might be in the glass.
• Chill the glass utilizing cold water.
• A wetted glass pours better.

Rinser Water Inlet Installation

• Always check local plumbing codes first.
• Install in-line water regulator set at 15 PSI from the street water supply (no greater, perfect operating pressure).
• Install in-line one way check valve from the street water supply (prevents pressure drop which can cause leaking).
• Install in-line shut-off for the rinser system from the street water supply (this must be turned off nightly).
• If teed into soda system make sure system can handle the increased water demand. Have plumber install a 45° 1/2" O.D. barb for the drains if line is not hard plumbed into the system.
• Install a shut-off for the water supply if line is not hard plumbed into the system.
